OpenVPN网桥模式实现LAN-TO-LAN+帐号密码认证



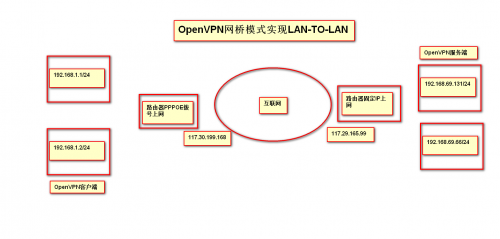

使用openvpn的桥接模式,就可以让vpn客户端和VPN服务端的IP在同一网段。

客户端连接VPN后,分配IP地址:192.168.69.201

服务器所在的网络为:192.168.69.0/24

服务器IP地址:192.168.69.131

功能:客户端连接VPN后,可以ping通VPN服务器所在的私有网段的所有主机



以下的配置是在安装完成openvpn之后

服务启动方式:

先运行脚本:/usr/local/openvpn/config/bridge-start

再启动服务:serviceopenvpn start





2.bridge-start配置



#!/bin/sh

#################################

# Set up Ethernet bridge on Linux

# Requires: bridge-utils

#################################

# Define Bridge Interface

br="br0"

# Define list of TAP interfaces to be bridged,

# for example tap="tap0 tap1 tap2".



#这边的tap0要和server.conf中的dev tap0对应

tap="tap0"



# Define physical ethernet interface to be bridged

# with TAP interface(s) above.

eth="eth0"

eth_ip="192.168.69.131"

eth_netmask="255.255.128.0"

eth_broadcast="192.168.127.255"





for t in $tap; do

    openvpn --mktun --dev $t

done

brctl addbr $br

brctl addif $br $eth

for t in $tap; do

    brctl addif $br $t

done

for t in $tap; do

    ifconfig $t 0.0.0.0 promisc up

done

ifconfig $eth 0.0.0.0 promisc up

ifconfig $br $eth_ip netmask $eth_netmask broadcast $eth_broadcast



#在运行文件后,桥接IP和eth0物理同时会有IP地址,这时将物理IP地址清空,并加上默认网关

sleep 3

ifconfig eth0 0

sleep 3

route add default gw 192.168.66.1







3.bridge-stop配置



#!/bin/sh

####################################

# Tear Down Ethernet bridge on Linux

####################################



# Define Bridge Interface

br="br0"

# Define list of TAP interfaces to be bridged together

tap="tap0"



ifconfig $br down

brctl delbr $br





for t in $tap; do

    openvpn --rmtun --dev $t

done



#在运行此文件后,服务器无法获取由DHCP指派的网络,加以下命令

service network restart









4.server.conf配置文件

port 1194

proto tcp

dev tap0

ca /usr/local/openvpn/config/ca.crt

cert /usr/local/openvpn/config/server.crt

key /usr/local/openvpn/config/server.key  # This file should be kept secret

dh dh2048.pem

ifconfig-pool-persist ipp.txt

server-bridge 192.168.69.131 255.255.255.0 192.168.69.200 192.168.69.250

push "route 192.168.66.0 255.255.255.0"

keepalive 10 120

cipher AES-256-CBC

comp-lzo

user nobody

group nobody

persist-key

persist-tun

status /var/log/openvpn/openvpn-status.log

log        /var/log/openvpn/openvpn.log

verb 3

#以下配置文件开启用户名和密码认证

auth-user-pass-verify /usr/local/openvpn/config/checkpsw.shvia-env

client-cert-not-required

username-as-common-name

script-security 3









网络信息

[root@node66131 config]# ifconfig

br0       Link encap:Ethernet HWaddr 2C:FD:A1:5D:84:07

          inetaddr:192.168.69.131 Bcast:192.168.127.255 Mask:255.255.128.0

          inet6addr: fe80::2efd:a1ff:fe5d:8407/64 Scope:Link

          UPBROADCAST RUNNING MULTICAST MTU:1500  Metric:1

          RXpackets:1977069 errors:0 dropped:0 overruns:0 frame:0

          TXpackets:37752 errors:0 dropped:0 overruns:0 carrier:0

         collisions:0 txqueuelen:0

          RXbytes:133220859 (127.0 MiB)  TXbytes:27364255 (26.0 MiB)



eth0      Link encap:Ethernet HWaddr 2C:FD:A1:5D:84:07

          inet6addr: fe80::2efd:a1ff:fe5d:8407/64 Scope:Link

          UPBROADCAST RUNNING PROMISC MULTICAST MTU:1500  Metric:1

          RXpackets:2167457 errors:0 dropped:0 overruns:0 frame:0

          TXpackets:56324 errors:0 dropped:0 overruns:0 carrier:0

          collisions:0 txqueuelen:1000

          RXbytes:206660856 (197.0 MiB)  TXbytes:30124583 (28.7 MiB)



lo        Linkencap:Local Loopback

          inetaddr:127.0.0.1  Mask:255.0.0.0

          inet6addr: ::1/128 Scope:Host

          UPLOOPBACK RUNNING  MTU:65536  Metric:1

          RXpackets:374 errors:0 dropped:0 overruns:0 frame:0

          TXpackets:374 errors:0 dropped:0 overruns:0 carrier:0

         collisions:0 txqueuelen:0

          RXbytes:46292 (45.2 KiB)  TX bytes:46292(45.2 KiB)



tap0      Linkencap:Ethernet  HWaddrA2:0C:78:42:B8:36

          inet6addr: fe80::a00c:78ff:fe42:b836/64 Scope:Link

          UPBROADCAST RUNNING PROMISC MULTICAST MTU:1500  Metric:1

          RX packets:1407 errors:0 dropped:0overruns:0 frame:0

          TXpackets:1935925 errors:0 dropped:10040 overruns:0 carrier:0

         collisions:0 txqueuelen:100

          RXbytes:158956 (155.2 KiB)  TXbytes:149774507 (142.8 MiB)



[root@node66131 config]# route -n

Kernel IP routing table

Destination    Gateway         Genmask         Flags Metric Ref    Use Iface

192.168.0.0     0.0.0.0         255.255.128.0   U    0      0        0 br0

0.0.0.0        192.168.66.1    0.0.0.0         UG   0      0        0 br0

[root@node66131 config]# brctl show

bridge namebridgeid       STP enabledinterfaces

br0     8000.2cfda15d8407   no      eth0

                            tap0

[root@node66131 config]# ss

State      Recv-Q Send-Q                                     LocalAddress:Port                                         PeerAddress:Port

ESTAB      0      0                                        192.168.69.131:ssh                                        192.168.66.68:50554

ESTAB      0      0                                         192.168.69.131:ssh                                        192.168.66.68:50511

ESTAB      0      2007                             192.168.69.131:openvpn                             117.30.199.168:19769

ESTAB       0     52                                        192.168.69.131:ssh                                        192.168.66.68:50412

ESTAB       0     0                                        192.168.69.131:ssh                                        192.168.66.68:50498


配置openvpn使用账号、密码方式验证登录:

第一步:修改Server端配置文件:

在最后面添加以下文件:

vim /usr/local/openvpn/config/server.conf

在文件最后面添加以下配置

auth-user-pass-verify /usr/local/openvpn/etc/checkpsw.sh via-env

client-cert-not-required

username-as-common-name

script-security 3



如果加上client-cert-not-required则代表只使用用户名密码方式验证登录如果不加则代表需要证书和用户名密码双重验证登录



checkpsw.sh下载地址http://openvpn.se/files/other/checkpsw.sh

将文件放到以下目录下:

[root@node66131 config]# pwd

/usr/local/openvpn/config

[root@node66131 config]# ls

bridge-start  ca.crt  checkpsw.sh  ipp.txt  server.conf      server.crt  ta.key

bridge-stop   ca.key  dh2048.pem  psw-file  server.conf.bak  server.key

[root@node66131 config]# chmod 755 checkpsw.sh    #添加执行权限



第二步修改checkpsw.sh里的相应参数主要改下PASSFILELOG_FILE两个变量就可以了

[root@node66131 config]# cat checkpsw.sh

#!/bin/sh

###########################################################

# checkpsw.sh (C) 2004 Mathias Sundman<mathias@openvpn.se>

#

# This script will authenticate OpenVPN usersagainst

# a plain text file. The passfile should simplycontain

# one row per user with the username first followedby

# one or more space(s) or tab(s) and then thepassword.



PASSFILE="/usr/local/openvpn/config/psw-file"

LOG_FILE="/var/log/openvpn/openvpn-password.log"

TIME_STAMP=`date "+%Y-%m-%d %T"`



###########################################################



if [ ! -r "${PASSFILE}" ]; then

  echo"${TIME_STAMP}: Could not open password file \"${PASSFILE}\" forreading." >> ${LOG_FILE}

  exit 1

fi



CORRECT_PASSWORD=`awk'!/^;/&&!/^#/&&$1=="'${username}'"{print $2;exit}'${PASSFILE}`



if [ "${CORRECT_PASSWORD}" = ""]; then

  echo"${TIME_STAMP}: User does not exist: username=\"${username}\",password=\"${password}\"." >> ${LOG_FILE}

  exit 1

fi



if [ "${password}" ="${CORRECT_PASSWORD}" ]; then

  echo"${TIME_STAMP}: Successful authentication:username=\"${username}\"." >> ${LOG_FILE}

  exit 0

fi



echo "${TIME_STAMP}: Incorrect password:username=\"${username}\", password=\"${password}\".">> ${LOG_FILE}

exit 1





第三步新建用户和密码认证文件psw-file(这里的文件就是server.conf那个文件注意存放时路径和配置文件时的一致)

创建文件

#touch /usr/local/openvpn/config/psw-file



vim psw-file



test   123456 (前面是用户后面是密码)



注:这里 psw-file的权限,尽量小点



chmod 400 psw-file



chown nobody.nobody psw-file



第四步修改客户端配置文件client.conf或者client.ovpn

vim client.ovpn

注销掉这两行

#cert client1.crt

#key client1.key



再添加这一行,添加这行,就会提示输入用户名和密码



auth-user-pass

auth-nocache

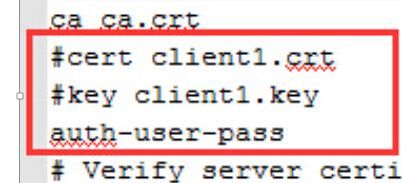

如图:(更改过后的)





接下来,就可以测试了^_^
