Character Set Support for Distributed Environments

Oracle Database supports environments in which clients, Oracle Database servers, and non-Oracle Database servers use different character sets. NCHAR support is provided for heterogeneous environments. You can set a variety of National Language Support (NLS) and Heterogeneous Services (HS) environment variables and initialization parameters to control data conversion between different character sets.

Character settings are defined by the following NLS and HS parameters:

Parameters Environment Defined For
NLS_LANG (environment variable) Client-Server Client
NLS_LANGUAGE

NLS_CHARACTERSET

NLS_TERRITORY

Client-Server

Not Heterogeneous Distributed

Heterogeneous Distributed

Oracle Database server
HS_LANGUAGE Heterogeneous Distributed Non-Oracle Database server

Transparent gateway

NLS_NCHAR (environment variable)

HS_NLS_NCHAR

Heterogeneous Distributed Oracle Database server

Transparent gateway


See Also:

Client/Server Environment

In a client/server environment, set the client character set to be the same as or a subset of the Oracle Database server character set, as illustrated in Figure 30-6.

Figure 30-6 NLS Parameter Settings in a Client/Server Environment

Description of Figure 30-6 follows
Description of "Figure 30-6 NLS Parameter Settings in a Client/Server Environment"

Homogeneous Distributed Environment

In a non-heterogeneous environment, the client and server character sets should be either the same as or subsets of the main server character set, as illustrated in Figure 30-7:

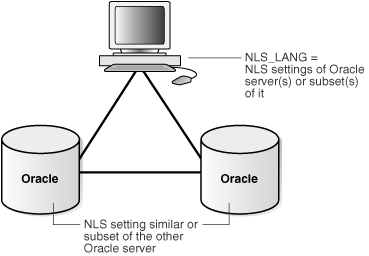

Figure 30-7 NLS Parameter Settings in a Homogeneous Environment

Description of Figure 30-7 follows
Description of "Figure 30-7 NLS Parameter Settings in a Homogeneous Environment"

Heterogeneous Distributed Environment

In a heterogeneous environment, the globalization support parameter settings of the client, the transparent gateway, and the non-Oracle Database data source should be either the same or a subset of the database server character set as illustrated in Figure 30-8. Transparent gateways have full globalization support.

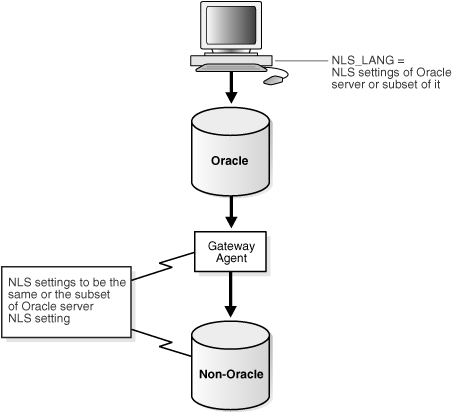

Figure 30-8 NLS Parameter Settings in a Heterogeneous Environment

Description of Figure 30-8 follows
Description of "Figure 30-8 NLS Parameter Settings in a Heterogeneous Environment"

In a heterogeneous environment, only transparent gateways built with HS technology support complete NCHAR capabilities. Whether a specific transparent gateway supports NCHAR depends on the non-Oracle Database data source it is targeting. For information on how a particular transparent gateway handles NCHAR support, consult the system-specific transparent gateway documentation.

See Also:

Oracle Database Heterogeneous Connectivity User's Guide for more detailed information about Heterogeneous Services
