SQL*Plus Quick Start

These instructions are to enable you to login and connect to a database after you have installed SQL*Plus. You can connect to the default database you created during installation, or to another existing Oracle database.

SQL*Plus Resources

SQL*Plus Overview

SQL*Plus is an interactive and batch query tool that is installed with every Oracle Database installation. It has a command-line user interface.

There is also the SQL*Plus Instant Client which is a stand-alone command-line interface available on platforms that support the OCI Instant Client. SQL*Plus Instant Client connects to any available Oracle database, but does not require its own Oracle database installation. See the Oracle Call Interface Programmer's Guide for more information on the OCI Instant Client.

SQL*Plus has its own commands and environment, and it provides access to the Oracle Database. It enables you to enter and execute SQL, PL/SQL, SQL*Plus and operating system commands to perform the following:

You can use SQL*Plus to generate reports interactively, to generate reports as batch processes, and to output the results to text file, to screen, or to HTML file for browsing on the Internet. You can generate reports dynamically using the HTML output facility of SQL*Plus.

Who Can Use SQL*Plus

The SQL*Plus, SQL, and PL/SQL command languages are powerful enough to serve the needs of users with some database experience, yet straightforward enough for new users who are just learning to work with the Oracle Database.

The SQL*Plus language is easy to use. For example, to rename a column labelled LAST_NAME with the heading "Family Name", enter the command:

COLUMN LAST_NAME HEADING 'Family Name'

Similarly, to list column definitions for the EMPLOYEES table, enter the command:

DESCRIBE EMPLOYEES

How Can I Learn SQL*Plus

There are several sources available to assist you to learn SQL*Plus:

How to Use the SQL*Plus Guide

This guide provides information about SQL*Plus that applies to all operating systems. It also includes some Windows and UNIX specific information. Some aspects of SQL*Plus may differ on each operating system. Operating system specific details are covered in the Oracle Database Installation Guide provided for your system. Use these operating system specific guides in conjunction with this SQL*Plus User's Guide and Reference.

Throughout this guide, examples showing how to enter commands use a common command syntax and a common set of sample tables. The tables are described in "Sample Schemas and SQL*Plus".

SQL*Plus Command-line Architecture

SQL*Plus command-line uses a two-tier model comprising:

The two tiers may be on the same machine.

SQL*Plus Client

The command-line user interface is the character-based terminal implementation.

Oracle Database

Oracle Database Net components provide communication between the SQL*Plus Client and Oracle Database.

SQL*Plus Prerequisites

SQL*Plus is a component of Oracle Database. SQL*Plus is installed by default when you install the Oracle Database.

Some aspects of Oracle Database and SQL*Plus differ from one computer and operating system to another. These topics are discussed in the Oracle Database Installation Guide for each operating system that SQL*Plus supports.

What is necessary before you can run SQL*Plus?

SQL*Plus Date Format

The default date format in SQL*Plus is determined by the database NLS_DATE_FORMAT parameter and may use a date format displaying two digit years. You can use the SQL TO_CHAR function, or the SQL*Plus COLUMN FORMAT command in your SELECT statements to control the way dates are displayed in your report.

Starting SQL*Plus Command-line

The SQL*Plus executable is usually installed in $ORACLE_HOME/bin, which is usually included in your operating system PATH environment variable. You may need to change directory to the $ORACLE_HOME/bin directory to start SQL*Plus.

In the following examples, you are prompted to enter the database account password.

An example using an Easy Connection identifier to connect to the HR schema in the MYDB database running on mymachine is:

sqlplus hr@//mymachine.mydomain:port/MYDB

An example using a Net Service Name is:

sqlplus hr@MYDB

Net Service Names can be stored in a number of places, including Oracle Names. See the Net Services Reference Guide for more information.

If you want to use Net Service Names configured in a local Oracle Net tnsnames.ora file, then set the environment variable TNS_ADMIN to the directory containing the tnsnames.ora file. For example, on UNIX, if your tnsnames.ora file is in /home/user1 and it defines the Net Service Name MYDB2:

TNS_ADMIN=/home/user1
export TNS_ADMIN
sqlplus hr@MYDB2

This example assumes the ORACLE_HOME environment variable is set, and the $ORACLE_HOME/network/admin/tnsnames.ora or ORACLE_HOME\network\admin\tnsnames.ora file defines the Net Service Name MYDB3:

sqlplus hr@MYDB3

The TWO_TASK (on UNIX) or LOCAL (on Windows) environment variable can be set to a connection identifier. This removes the need to explicitly enter the connection identifier whenever a connection is made in SQL*Plus or SQL*Plus Instant Client. This UNIX example connects to the database known as MYDB4:

TNS_ADMIN=/home/user1
export TNS_ADMIN
TWO_TASK=MYDB4
export TWO_TASK
sqlplus hr

To start SQL*Plus and connect to the default database

  1. Open a UNIX or a Windows terminal and enter the SQL*Plus command:

    sqlplus

  2. When prompted, enter your Oracle Database username and password. If you do not know your Oracle Database username and password, ask your Database Administrator.

  3. Alternatively, enter the SQL*Plus command in the form:

    sqlplus username


    You are prompted to enter your password.

  4. SQL*Plus starts and connects to the default database.

    Now you can start entering and executing SQL, PL/SQL and SQL*Plus statements and commands at the SQL> prompt.

To start SQL*Plus and connect to a database other than the default

Open a UNIX or a Windows terminal and enter the SQL*Plus command:

sqlplus username@connect_identifier

You are prompted to enter your password.

Starting SQL*Plus Instant Client

SQL*Plus Instant Client is the SQL*Plus command-line without the need to install Oracle Database. For information about using it, see Starting SQL*Plus Command-line.

Because SQL*Plus Instant Client does not include a database, it is always 'remote' from any database server. To connect to a database you must specify the database using an Oracle Net connection identifier.

If TNS_ADMIN is not set, then an operating system dependent set of directories is examined to find tnsnames.ora. This search path includes looking in the directory specified by the ORACLE_HOME environment variable for network/admin/tnsnames.ora. This is the only reason to set the ORACLE_HOME environment variable for SQL*Plus Instant Client. If ORACLE_HOME is set when running Instant Client applications, it must be set to a directory that exists.

Connecting to a Different Database

From an existing command-line session, enter a CONNECT command in the form:

SQL> connect username@connect_identifier

You are prompted to enter your password.

Sample Schemas and SQL*Plus

Sample schemas are included with the Oracle Database. Examples in this guide use the EMP_DETAILS_VIEW view of the Human Resources (HR) sample schema. This schema contains personnel records for a fictitious company. To view column details for the view, EMP_DETAILS_VIEW, enter

DESCRIBE EMP_DETAILS_VIEW

For more information about the sample schemas, see the Oracle Database Sample Schemas guide.

Unlocking the Sample Tables

The Human Resources (HR) Sample Schema is installed as part of the default Oracle Database installation. The HR account is locked by default.

You need to unlock the HR account before you can use the HR sample schema. To unlock the HR account, log in as the SYSTEM user and enter the following command, where your_password is the password you want to define for the user HR:

ALTER USER HR IDENTIFIED BY your_password ACCOUNT UNLOCK;

For further information about unlocking the HR account, see the Oracle Database Sample Schemas guide. The HR user is primarily to enable you to access the HR sample schema and is necessary to enable you to run the examples in this guide.

Each table in the database is "owned" by a particular user. You may wish to have your own copies of the sample tables to use as you try the examples in this guide. To get your own copies of the HR tables, see your DBA or see the Oracle Database Sample Schemas guide, or you can create the HR tables with the script HR_MAIN.SQL which is located in the following directory on UNIX:

$ORACLE_HOME/demo/schema/human_resources/hr_main.sql

And on the following directory on Windows:

ORACLE_HOME\DEMO\SCHEMA\HUMAN_RESOURCES\HR_MAIN.SQL

To create the HR tables from command-line SQL*Plus, do the following:

  1. Ask your DBA for your Oracle Database account username and password.

  2. Login to SQL*Plus.

  3. On UNIX, enter the following command at the SQL*Plus prompt:

    SQL> @?/DEMO/SCHEMA/HUMAN_RESOURCES/HR_MAIN.SQL


    On Windows, enter the following command at the SQL*Plus prompt:

    SQL> @?\DEMO\SCHEMA\HUMAN_RESOURCES\HR_MAIN.SQL


To remove the sample tables, perform the same steps but substitute HR_DROP.SQL for HR_MAIN.SQL.

Running your first Query

To describe a database object, for example, column details for EMP_DETAILS_VIEW, enter a DESCRIBE command like:

DESCRIBE EMP_DETAILS_VIEW

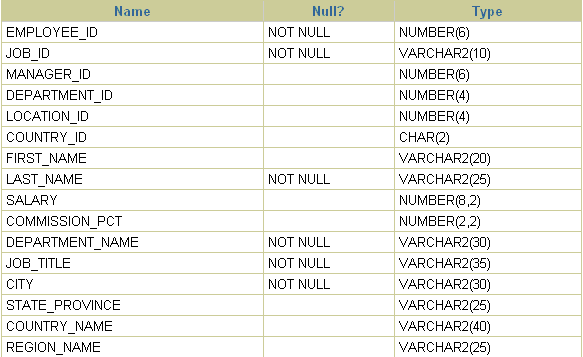

which produces the following output:

Description of describe.gif follows
Description of the illustration describe.gif

To rename the column headings, and to select data from the HR sample schema view, EMP_DETAILS_VIEW, enter

COLUMN FIRST_NAME HEADING "First Name"
COLUMN LAST_NAME HEADING "Family Name"
SELECT FIRST_NAME, LAST_NAME
FROM EMP_DETAILS_VIEW
WHERE LAST_NAME LIKE 'K%';

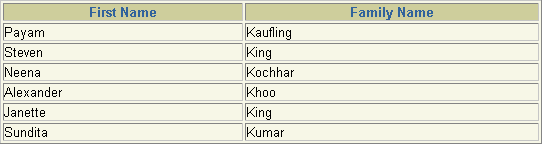

which produces the following output:

Description of selectout.gif follows
Description of the illustration selectout.gif

Exiting SQL*Plus

To exit SQL*Plus command-line, enter EXIT.
