A collection groups elements of the same type in a specified order. Each element has a unique subscript that determines its position in the collection.
PL/SQL has three kinds of collections:
Associative arrays (formerly called "PL/SQL tables" or "index-by tables")
Nested tables
Variable-size arrays (varrays)
Associative arrays can be indexed by either integers or strings. Nested tables and varrays are indexed by integers.
To create a collection, you first define a collection type, and then declare a variable of that type.
Note:
This topic applies to collection types that you define inside a PL/SQL block or package, which are different from standalone stored collection types that you create with the "CREATE TYPE Statement".In a PL/SQL block or package, you can define all three collection types. With the CREATE
TYPE
statement, you can create nested table types and varray types, but not associative array types.
Topics:
Syntax
collection_type_definition ::=

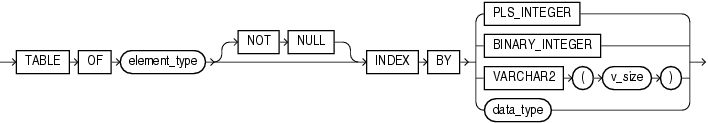

assoc_array_type_def ::=
See:
nested_table_type_def ::=
See element_type ::=.
varray_type_def ::=
See element_type ::=.
collection_variable_dec ::=

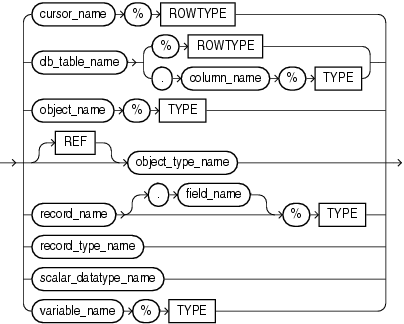

element_type ::=
Semantics
collection_type_definition
type_name
The name of the collection type that you are defining.
assoc_array_type_def
The type definition for an associative array.
Restriction on assoc_array_type_def The type definition of an associative array can appear only in the declarative part of a block, subprogram, package specification, or package body.
nested_table_type_def
The type definition for a nested table.
varray_type_def
The type definition for a variable-size array.
assoc_array_type_def
element_type
The data type of the elements of the associative array—any PL/SQL data type except REF
CURSOR
.
NOT NULL
Specifies that no element of the associative array can have the value NULL
.
PLS_INTEGER
Specifies that the data type of the indexes of the associative array is PLS_INTEGER
.
BINARY_INTEGER
Specifies that the data type of the indexes of the associative array is BINARY_INTEGER
.
VARCHAR2 (v_size)
Specifies that the data type of the indexes of the associative array is VARCHAR2
with length v_size
.
data_type
Specifies that the data type of the indexes of the associative array is a data type specified with either %ROWTYPE
or %TYPE
. This data type must represent either PLS_INTEGER
, BINARY_INTEGER
, or VARCHAR2(
v_size
)
.
nested_table_type_def
element_type
The data type of the elements of the nested table—any PL/SQL data type except REF
CURSOR
or NCLOB
.
If element_type
is a scalar type, then the nested table has a single, scalar type column called COLUMN_VALUE
.
If element_type
is an ADT, then the columns of the nested table match the name and attributes of the ADT.
NOT NULL
Specifies that no nested table element can have the value NULL
.
varray_type_def
size_limit
The maximum number of elements that the varray can have—an integer literal in the range from 1 through 2147483647.
element_type
The data type of the associative array element—any PL/SQL data type except REF
CURSOR
.
NOT NULL
Specifies that no element of the varray can have the value NULL
.
collection_variable_dec
collection_name
The name of the collection variable that you are declaring.
type_name
The type of the collection variable that you are defining.
element_type
cursor_name
The name of an explicit cursor.
db_table_name
The name of a database table or view, which must be accessible when the collection definition is elaborated.
column_name
The name of a column of the database table or view db_table_name
.
object_name
An instance of a user-defined type.
[ REF ] object_type_name
The name of a user-defined type.
record_name
The name of a record.
field_name
The name of a field of the record record_name
.
record_type_name
The name of a user-defined type that was defined with the data type specifier RECORD
.
scalar_datatype_name
The name of a predefined scalar data type, including any qualifiers for size, precision, and character or byte semantics. For information about predefined scalar data types, see "Predefined PL/SQL Scalar Data Types and Subtypes".
variable_name
The name of a variable.
Examples
Example 5-1, "Declaring and Populating Associative Array Indexed by String"
Example 5-3, "Declaring Nested Tables, Varrays, and Associative Arrays"
Example 5-5, "Declaring a Procedure Parameter as a Nested Table"
